K&P Engineering Lifetime Oil Filter/Cooler Powder Coat Black Diamond Cut for ALL Harley Models (Except VROD) – Choose from S4 and S44

Brand:
Brands

$223.00

Fitment: The S4 and S44 fit all Harley Motorcycles except the VROD.  VROD has its own fitment.

NOTE: If your motorcycle has a crank position sensor where the oil filter goes then the S69 filter will not fit your motorcycle. Please see the S44 or S4 Oil Filters.

This product has a lifetime warranty on the materials and the workmanship (excludes filter finish and o-ring).

Oil Filter includes all necessary parts for a complete oil filter cooler with o-ring, filter wrench, extra o-ring and cleaning instructions on the inside of the label.

This filter requires the external o-ring to be changed after a few oil changes to prevent leakage.  You can add extra oil filters to your purchase in the drop down menu below or purchase them from our site at a later time.

HARLEY DAVIDSON

  • Dyna Evo 91-98
  • Dyna Twin Cam 99-17
  • Milwaukee 8 16-18
  • Softail Evo 84-99
  • Softail Twin Cam 00-17
  • Sportster 85-18
  • Tri-Glides 09-18
  • Touring Evo 82-98
  • Touring Twin Cam 99-17
  • CVO All Models 99-17
$

Description

The K&P Lifetime Oil Filter/Cooler

Fitment: The S4, S44 and the S69 fit all Harley Motorcycles except the VROD. VROD has its own fitment.

NOTE: If your motorcycle has a crank position sensor where the oil filter goes then the S69 filter will not fit your motorcycle. Please see the S44 or S4 Oil Filters.

K&P manufacturers the best oil filters period. These filters are made from billet aluminum with a stainless steel filter insert that can be cleaned and re-used. The finned case also performs as an oil filter cooler that will help cool down your engine oil which will in turn, allow the oil to flow faster and keep your engine performing more efficiently.

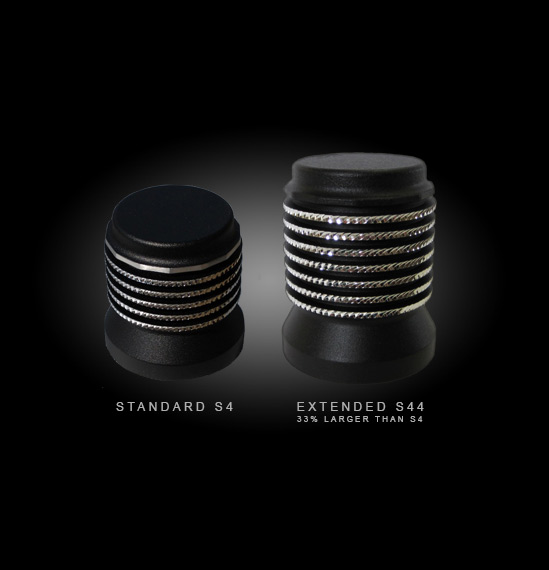

There are a couple of differences between the S4, S44 and the S69 oil filters. The S4 is the original size oil filter that K&P manufacturers at a length of 3″. This is a great filter hands down over any paper filter or any other re-useable oil filter on the market. Not long after we began selling this quality filter we spoke with Dave about increasing the length to get even more cooling benefits. Harley’s are hot running machines so anything that can help cool them down is a plus. That’s when the S44 K&P Oil Filter was introduced. It is 3 9/16″ in length which equals a 21.8% more cooling surface than the S4. The S44 also has a 14% larger oil capacity than the S4. The S44 will actually gain you an additional horsepower as well. Dyno tested! The S69 oil filter is the next level of filtration! This filter is often reffered to as “The Schlong” and it is a whopping 5 1/8″ in length. This filter has 100% more cooling surface and filter media size than the S4 making the S69 the top dog of oil filters sold currently.

The S44 and S69 lengths are a Cycle Solutions Inc exclusive product and can only be purchased from our website, show truck or shops. There are other companies selling a knock off version of the K&P Oil Filter. Do not be fooled. They are cheaply made and do not perform.

All sizes of the K&P Oil Filter/Cooler over these features and benefits:

  • The most technically advanced oil filter you can buy
  • Consistent filtering across entire filter surface
  • Superior ASTMF316 filtration performance
  • 7 times the flow of comparable paper oil filters
  • Magnetic Prefiltering
  • Billet aluminum filter case doubles as an oil cooler
  • Progressive rate bypass combined with high flow characteristics of the filter media avoids unfiltered oil bypassing the filter during cold startup and high rpm
  • No more cutting apart messy paper filters for trapped debris inspection
  • Proven in Motorsports, Military and Aerospace applications for years
  • No more oily paper filters to the landfills
  • May be the last oil filter you’ll buy
  • Inspect, Clean, Reuse

Using this filter is a breeze as shown in the video below. If you are a technical person and you are interested in the micron ratings then check out the additional information tab.

K&P Engineering High Performance Oil Filters

Allow us to offer this primer on filtration.

Filter media has a range of particles that it will remove. The smallest particle size it can
catch is usually referred to the “nominal” size. The largest particle size it lets through is
referred to as the “absolute” size. The sizes between those two are usually expressed as a
beta ratio, or percentage of efficiency. In other words, if you introduce 100 particles of
the 15 micron size and 60 of them get caught, you have a percentage of efficiency of 60.
It is interesting to note that some companies are very liberal with their advertised absolute
numbers.

There are many different test procedures that can be used to test the particulates a filter
media will remove. There are single pass, multiple pass, SAE, ASTM, and even
European specific tests. What gets difficult is how to compare the numbers used for
marketing filters. Picture yourself standing in the auto parts store in front of a rack of
filters trying to decide which filter is “best”. You see a 22 micron filter with some sort of
efficiency rating attached to it (for example 94% efficiency) and another with a 15
micron number printed on the box with no efficiency rating. And then you see one that
has printed on it that the filter will catch down to 5 microns. There is no way to
accurately compare those numbers. From a marketing standpoint it is better to print
lower numbers since most consumers don’t have a clue about efficiency ratings, and there
is more of a chance of the customer purchasing the lower number filter. Problem is the
“5 micron” filter may be letting more particles through the filter than the one that has 22
microns printed on it. A good example of this is the Harley Davidson Twin Cam filter.
On the box it says it will filter down to 5 microns. When tested at the lab it actually
passes 40 micron particles. Before you condemn the filter, I would note that it pretty
much tied with the Dodge Cummins diesel filter as the tightest OEM filters tested. As an
fyi, most paper filters range from 50 to 90 microns as their absolute number. Ours is 35
(and yes, we can catch 5 micron particles as well).

We use the ASTM test because it offers the smallest amount of manipulation of the
testing process. We test for worst case, or absolute numbers, partially to be able to
compare apples to apples between filters, and partially because of FAA testing.
As filter media gets tighter, the flow rate gets slower and the resistance to flow increases.
This resistance is referred to as differential pressure (the difference in pressure between
the outside and inside of the filter element). As the differential pressure increases, the
pressure against the bypass valve increases and the chance of the bypass opening
increases.

K&P Engineering focuses on maximizing flow rates while meeting or exceeding OEM
filtration. Not all stainless steel filter cloth is created equal. We specify the wire
diameter, thread count each direction and the type of weave to use to create our filter
cloth which is how we meet the filtration and flow goals. We can get between 5 and 7
quarts of oil through our filter element in the time it takes to get 1 quart through an OEM
filter element while still meeting or exceeding OEM filtration. The reason for this is that
paper and synthetic filter media is made of fibers that are pressed or glued together and

K&P Engineering High Performance Oil Filters

require a certain thickness to get to the filtration objective. This type of media inherently
has more flow restriction that the filter cloth that K&P Engineering uses. We tested a
pro stock engine on the dyno with a gauge on both sides of the filter cavity. At wide open
throttle we measured 20 lbs of differential pressure on the paper filter (0w at 180
degrees). The K&P Engineering filter measured less than 1 lb. This means the bypass
on the paper filter is open letting unfiltered oil through the filter and into the engine.
Ours has a lot further to go before it opens. The result is more filtered oil getting to the
engine, and getting there faster. The reduction in differential pressure also results in less
back pressure against the oil pump which has the potential to improve performance and or
fuel mileage.

Some will argue for a very tight filter media, and concentrate on the smallest particles a
filter will catch (even though it might be a nominal number). An analogy we use is to
think about the towel you are about to dry your freshly washed new car with. Are you
more concerned about the dust that has settled on the towel, or the rock that is in the
towel left over from when the towel was dropped. It also becomes a moot point on how
tight the filter media is if the bypass is open and the debris is flowing right past the filter
media. Some filter companies argue that they are ok with the bypass being open because
the debris will eventually get caught as the oil seeps through the media and the oil will
get to a cleaner level at some point in time. Our concern is what damage is being done
while that debris is passing through the engine over and over again waiting to get caught
in the filter media. We have customers that do want to get to that finer level of
cleanliness, and they usually go with a bypass filter setup. They use our filter as primary
filter, and a very tight filter on the bypass circuit. That way the oil is cleaned to OEM
levels with our filter, and as it dribbles through the tighter media of the bypass it will get
even cleaner.

The stainless steel filter cloth technology has been around a very long time. It is used in
military aircraft (fighter jets, helicopters) and even used for filtering blood. K&P
Engineering filters are approved by the FAA for aircraft use, and have just recently been
approved by the European equivalent of the FAA (EASA) for use on aircraft in Europe.
We are consistently monitored for quality assurance as a part of these approvals.
Having said all this, K&P Engineering appreciates the people that question the quality
provided by different filters. There are some cheaper counterfeits of our filter out there
that use the K&P Engineering information and numbers to promote themselves. When
we sent the media of those knock off screen filters out for testing at the lab, they came
back as filtering worse than the worst paper filters we have tested. It is kind of like the
Harbor Freight versions of Snap On tools.
